質問 # 40
A customer wants the APs in the CEO's office to have different usernames and passwords for administrative support than the other APs deployed throughout the facility. Which feature must be enabled on the WLC and APs to achieve this goal?
- A. local management users
- B. override global credentials
- C. 802.1X supplicant credentials
- D. HTTPS access
正解：B
解説：
You can set a global username, password, and enable password that all access points that are currently joined to the controller and any that join in the future inherit as they join the controller. If desired, you can override the global credentials and assign a unique username, password, and enable password for a specific access point. https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_01101011.html
質問 # 41
An engineer is managing a wireless network for a shopping center. The network includes a Cisco WLC, a Cisco MSE, and a Cisco Prime Infrastructure. What is required to use Cisco CMX Location Analytics?
- A. Install Cisco Prime Infrastructure with floor maps.
- B. Set history parameters in Cisco MSE.
- C. Enable Context Aware and CMX Browser Engage.
- D. Enable tracking parameters in Cisco MSE.
正解：D
解説：
Explanation
https://www.cisco.com/c/en/us/td/docs/wireless/mse/10-6/cmx_config/b_cg_cmx106/getting_started_with_c
質問 # 42
Which two protocols are used to communicate between the Cisco MSE and the Cisco Prime Infrastructure network management software? (Choose two.)
- A. SOAP
- B. Telnet
- C. SSH
- D. HTTPS
- E. NMSP
正解：A、D
解説：
Explanation
https://www.cisco.com/c/en/us/support/docs/wireless/5500-series-wireless-controllers/113344-cuwn-ppm.html#a
質問 # 43
An engineer must implement a BYOD policy with these requirements:
Onboarding unknown machines
Easily scalable
Low overhead on the wireless network
Which method satisfies these requirements?
- A. dual SSID
- B. single SSID
- C. open SSID
- D. triple SSID
正解：B
質問 # 44

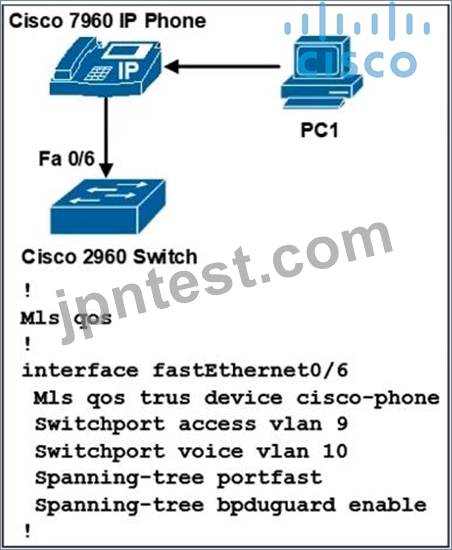

Refer to the exhibit. An engineer must preserve a QoS marking sent by the Cisco Jabber software running on PC1. Which marking value must be trusted on port Fa 0/6?
- A. 802.1p
- B. IP precedence
- C. CoS
- D. DSCP
正解：D
質問 # 45

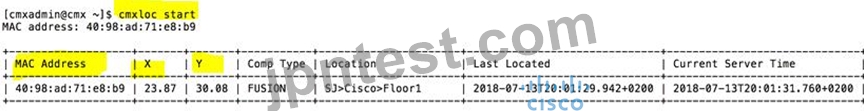

An engineer is performing a Cisco Hyperlocation accuracy test and executes the cmxloc start command on Cisco CMX. Which two parameters are relevant? (Choose two.)
- A. AP name
- B. X, Y real location
- C. client MAC address
- D. client description
- E. WLC IP address
正解：B、C
解説：
https://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/88/b_ap_4800_hyperlocation_deployment_guide.html
質問 # 46
A network engineer observes a spike in controller CPU overhead and overall network utilization after multicast is enabled on a controller with 500 APs. Which feature connects the issue?
- A. broadcast forwarding
- B. controller IGMP snooping
- C. multicast AP multicast mode
- D. unicast AP multicast mode
正解：C
質問 # 47
An engineer must implement rogue containment for an SSID. What is the maximum number of APs that should be used for containment?
- A. 0
- B. 1
- C. 2
- D. 3
正解：B
解説：
質問 # 48
What is the difference between PIM sparse mode and PIM dense mode?
- A. Sparse mode supports only one switch. Dense mode supports multiswitch networks.
- B. Sparse mode supports multiswitch networks. Dense mode supports only one switch.
- C. Sparse mode floods. Dense mode uses distribution trees.
- D. Sparse mode uses distribution trees. Dense mode floods.
正解：D
解説：
Explanation
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipmulti_pim/configuration/xe-16/imc-pim-xe-16-book/imc-te In Sparse mode packets branches distribution growth as new nodes join the multicast group.
https://community.calix.com/s/article/Dense-Mode-Multicast-vs-Sparse-Mode-Multicast-1
質問 # 49

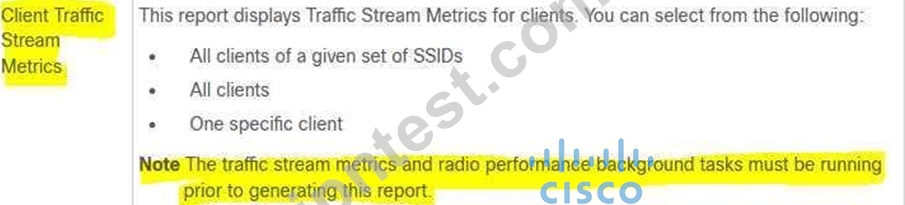

An engineer must run a Client Traffic Stream Metrics report in Cisco Prime Infrastructure. Which task must be run before the report?
- A. scheduled report
- B. radio performance
- C. client status
- D. software
正解：B
解説：
質問 # 50
A network is set up to support wired and wireless clients. Both types must authenticate using 802.1X before connecting to the network. Different types of client authentication must be separated on a Cisco ISE deployment. Which two configuration items achieve this task? (Choose two.)
- A. policy groups
- B. separate networks
- C. policy sets
- D. device profiles
- E. policy results
正解：A、C
質問 # 51
An engineer is configuring multicast for wireless for an all-company video meeting on a network using EIGRP and BGP within a single domain from a single source. Which type of multicast routing should be implemented?
- A. Source Specific Multicast
- B. Protocol Independent Multicast Dense Mode
- C. Multicast Source Discovery Protocol
- D. Protocol Independent Multicast Sparse Mode
正解：A
解説：
質問 # 52
An engineer completed the basic installation for two Cisco CMX servers and is in the process of configuring high availability, but it fails. Which two statements about the root of the issue are true? (Choose two.)
- A. The sizes of the primary and secondary Cisco CMX installations differ.
- B. Both Cisco CMX installations are virtual.
- C. The Cisco CMX instances are installed in the same subnet.
- D. The delay between the primary and secondary instance is 200 ms.
- E. The types of the primary and secondary Cisco CMX installations differ.
正解：A、E
質問 # 53

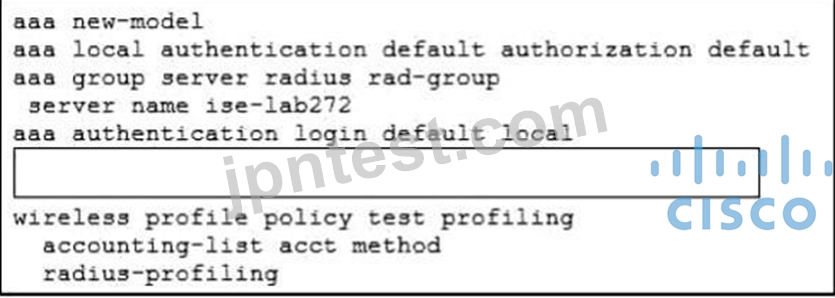

Refer to the exhibit.
A network architect configured the Cisco Catalyst 9800 Series Controller to find out information on client types in the wireless network. RADIUS profiling is enabled so that the controller forwards the information about clients to a Cisco ISE server through vendor-specific RADIUS attributes. The ISE server is not profiling any data from the controller. Which configuration must be added in the blank in the code to accomplish the profiling on the Cisco 9800 Series controller?
- A. aaa accounting network acct_method start-stop group rad-group
- B. aaa accounting commands acct_method start-stop group rad-group
- C. aaa accounting identity acct_method start-stop group rad-group
- D. aaa accounting exec acct_method start-stop group rad-group
正解：A
質問 # 54
An IT team is growing quickly and needs a solution for management device access. The solution must authenticate users from an external repository instead of the current local on the WLC, and it must also identify the user and determine what level of access users should have. Which protocol do you recommend to achieve these goals?
- A. RADIUS
- B. LDAP
- C. TACACS+
- D. network policy server
正解：C
解説：
Explanation
https://www.cisco.com/c/en/us/td/docs/switches/lan/Denali_161/ConfigExamples_Technotes/Techzone_Articles
https://community.cisco.com/t5/wireless-mobility-documents/wlc-and-acs-5-x-tacacs-configuration-example-we
質問 # 55
Which component must be integrated with Cisco DNA Center to display the location of a client that is experiencing connectivity issues?
- A. Cisco Connected Mobile Experiences
- B. Cisco Mobility Services Engine
- C. Cisco Hyperlocation Module
- D. Wireless Intrusion Prevention System
正解：A
解説：
質問 # 56

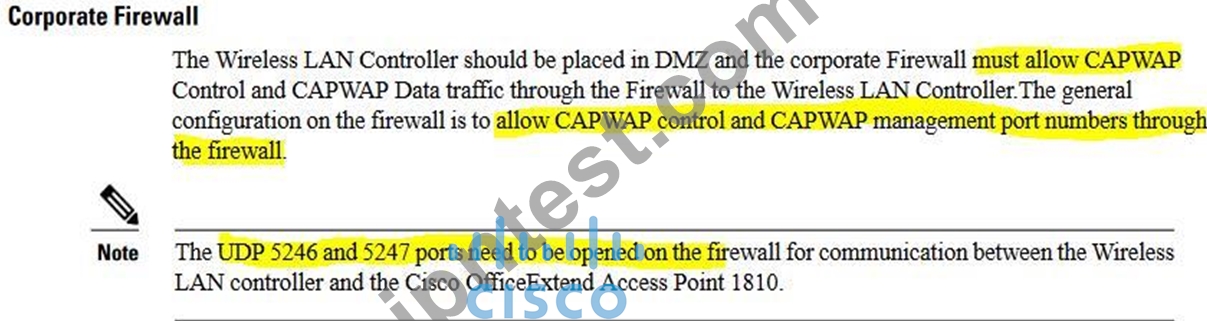

A corporation has employees working from their homes. A wireless engineer must connect 1810 OEAP at remote teleworker locations. All configuration has been completed on the controller side, but the network readiness is pending. Which two configurations must be performed on the firewall to allow the AP to join the controller? (Choose two.)
- A. Enable NAT Address on the 5520 with an Internet-routable IP address.
- B. Block UDP ports 1812 and 1813 on the firewall.
- C. Configure a static IP on the OEAP 1810.
- D. Allow UDP ports 5246 and UDP port 5247 on the firewall.
- E. Allow UDP ports 12222 and 12223 on the firewall.
正解：D、E
解説：
Explanation
Graphical user interface, text, application Description automatically generated
質問 # 57
Refer to the exhibit.
An engineer deployed a Cisco WLC using local EAP. Users who are configured for EAP-PEAP cannot connect to the network. Based on the local EAP debug controller provided, why is the client unable to connect?
- A. The client is falling to accept certificate.
- B. The user is using invalid credentials.
- C. The Cisco WLC is configured for the incorrect date.
- D. The Cisco WLC local EAP profile is misconfigured
正解：A
質問 # 58
An engineer completes the setup of a wo-node Cisco ISE deployment for a guest portal.
When testing the portal, the engineer notices that sometimes there is a certificate CN mismatch.
Which certificate type helps resolve this issue?
- A. Public-Signed Root
- B. Self-Signed Wildcard
- C. Self-Signed Standard
- D. Public-Signed SAN
正解：B
質問 # 59
Which list of characteristics must all controllers in a mobility group have in common based on best practices?
- A. mobility group name, version of controller code, and Control and Provisioning of Wireless Access Points mode
- B. mobility domain name, version of controller code, Control and Provisioning of Wireless Access Points mode, ACLs, and WLANs (SSIDs)
- C. mobility group name, version of controller code, Control and Provisioning of Wireless Access Points mode, ACLs, and WLANs (SSIDs)
- D. mobility domain name, version of controller code, and Control and Provisioning of Wireless Access Points mode
正解：C
質問 # 60
......
